Descripción

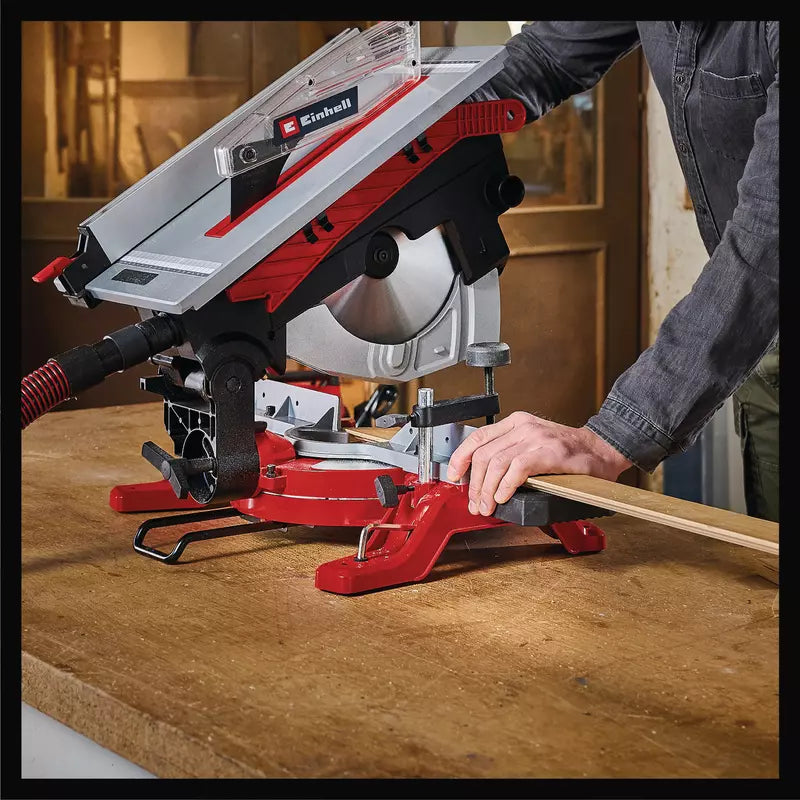

The Einhell mitre saw and cross-cut saw with table top TE-MS 254 T is a powerful and versatile work tool for use in the workshop and for DIY. With a power of 2000 watts and an idle speed of 5000 revolutions per minute, works powerfully and precisely with materials such as wood, coated panels or plastics.
The high-quality Ø 254 mm carbide-tipped saw blade cuts cleanly and precisely through the workpieces with its 36 teeth. The maximum cutting depth with an adjustment of 90° x 90° (saw table) is 100% adjustable. x saw head) is 74 mm as a miter saw and the highest cutting width is 130 mm.
The mitre saw and cross-cut saw can be easily converted and fixed to form a table saw without tools. In this case, the adjustable rip fence ensures straight cuts. The swivel table can be freely adjusted to the left and right at an angle of up to 45° - an angle scale helps to achieve an optimum position. For perfect mitres, the saw head can be tilted up to 45° to the left.
An integrated cutting line laser marks the cut. A workpiece support is located on the left and right to enable longer workpieces to be processed without any problems. The clamping device provides additional security, which can be used to secure work materials. Integrated Ø 36 mm suction connections, to which all Einhell wet and dry vacuum cleaners can be connected, for example, ensure clean work.
CHARACTERISTICS
Exact cuts
The integrated cutting line laser enables precise sawing and ensures a straight cut through the workpiece.
A straight line
The parallel stop on the upper table allows straight guidance of the workpiece for precise, straight cuts.
A clean thing
A separately available vacuum cleaner can be connected to the Ø 36 mm suction connections. This keeps the workshop and equipment clean.
Sliding cane
The scope of delivery includes a sliding stick, which extends the arm when working close to the saw blade and prevents injuries.
Insertion - parting - saws
The Einhell mitre and cross-cut saw impresses with its robust carbide-coated saw blade with a diameter of 254 mm. With workpiece supports, a clamping device and a cutting line laser, wood and wood-like materials can be sawed safely and precisely.
Quick and easy to the table saw
The upper table makes it possible - the integrated table enables tool-free conversion from mitre saw to table saw. The corresponding rip fence enables precise cuts.
Lace function
The saw table can be rotated up to 45° to the left or right and thus locks into certain positions.
Clamping device
The clamping device provides additional safety when sawing. Whether wood or wood-like material, everything is securely fixed.
Workpiece supports
Thanks to the workpiece supports on the left and right, even longer workpieces can be machined.
Saw blade
The high-quality carbide-coated saw blade with a diameter of 254 mm and 36 teeth impresses with its good cutting performance.
