Descripción

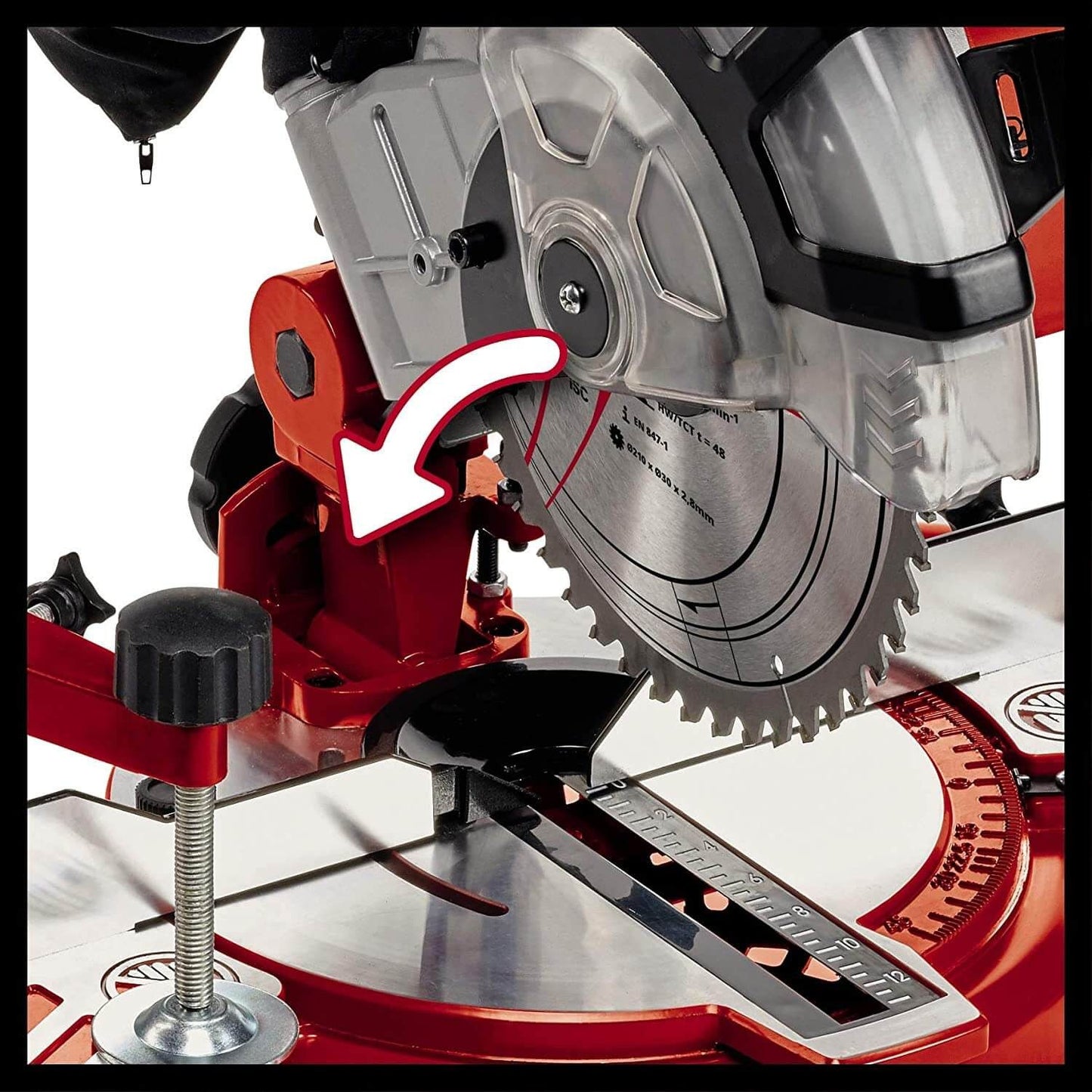

The high-quality work table made of die-cast aluminum impresses with its exact angle adjustment, which can be adjusted with one hand in different positions. The table insert is equipped with a practical scale, on which the width of the workpiece can be seen comfortably from the working position.
While workpiece supports on both sides and a reliable clamping device ensure precise work, the cutting depth regulation also allows demanding tasks to be carried out with ease.
The professional quality carbide saw blade offers a cutting capacity of over 200 m in chipboard and can be easily changed due to the spindle lock. The dust bag keeps the workplace clean and a transport lock ensures easy and safe transport.
CHARACTERISTICS
- High quality, hard metal precision saw blade.
- Die-cast aluminum work plate
- Rotary table with precise angular adjustment

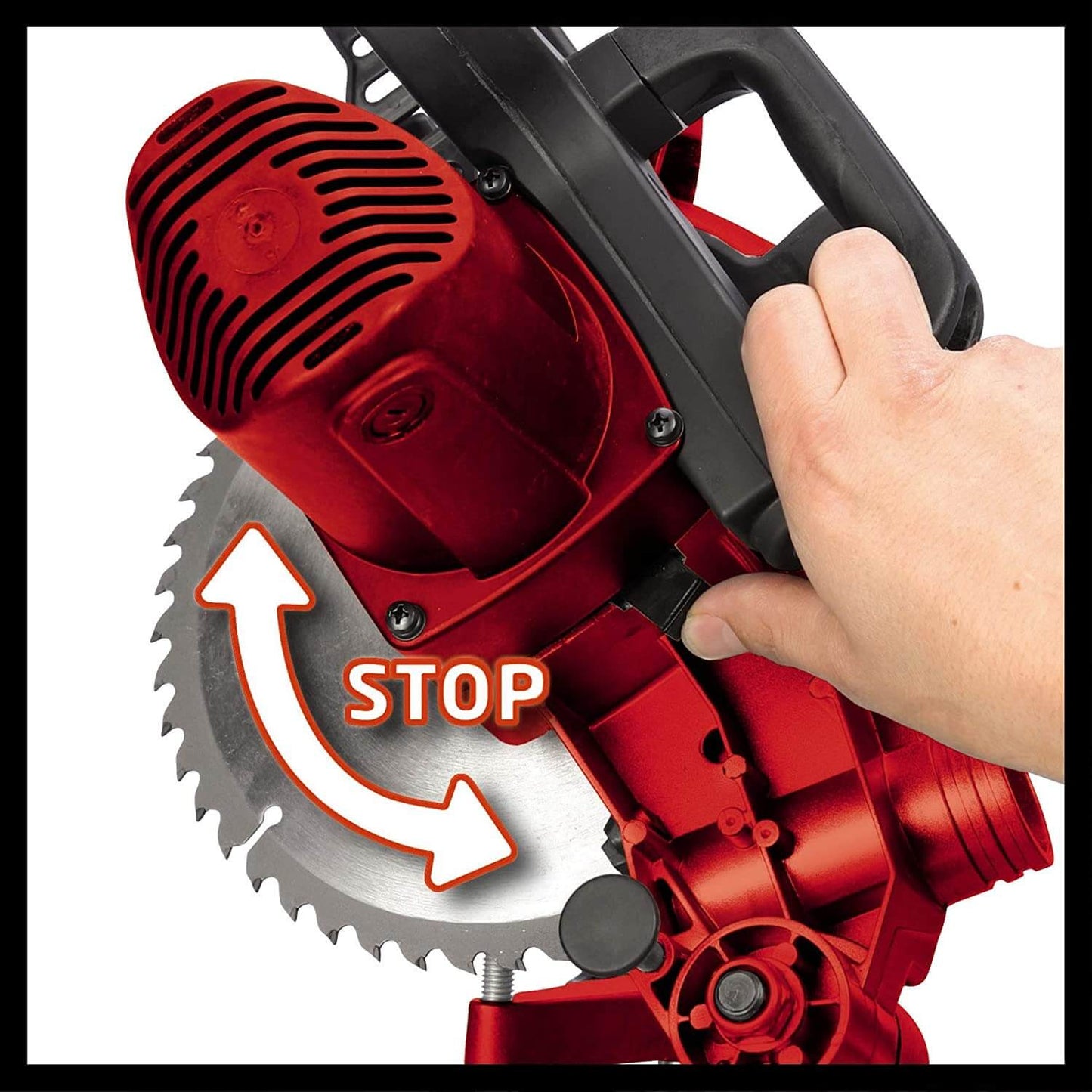

- Saw head tilts to the left for miter cuts
- Supports on both sides
- Clamping device for secure fixation of the workpiece
- Spindle lock for easy saw blade change
- Includes chip collection bag for a clean workplace
- Table insert with scale
SPECIFICATIONS
- Mains supply: 230 V 50 Hz
- Power: 1400W
- Max power motor power (S6%): 1600 W 40%
- Idle speed: 5000 min^-1
- Saw blade: 210mm x 30mm
- Rotating range: 45° - 45°
- Miter cutting: 45° - 0°
- Cutting width 90° x 90°: 120 mm x 55 mm
- Cutting width 90° x 45°: 80 mm x 55 mm
- Cutting width 45° x 90°: 120 mm x 32 mm
- Cutting width 45° x 45°: 80 mm x 32 mm
- Weight : 7.1kg
