Descripción

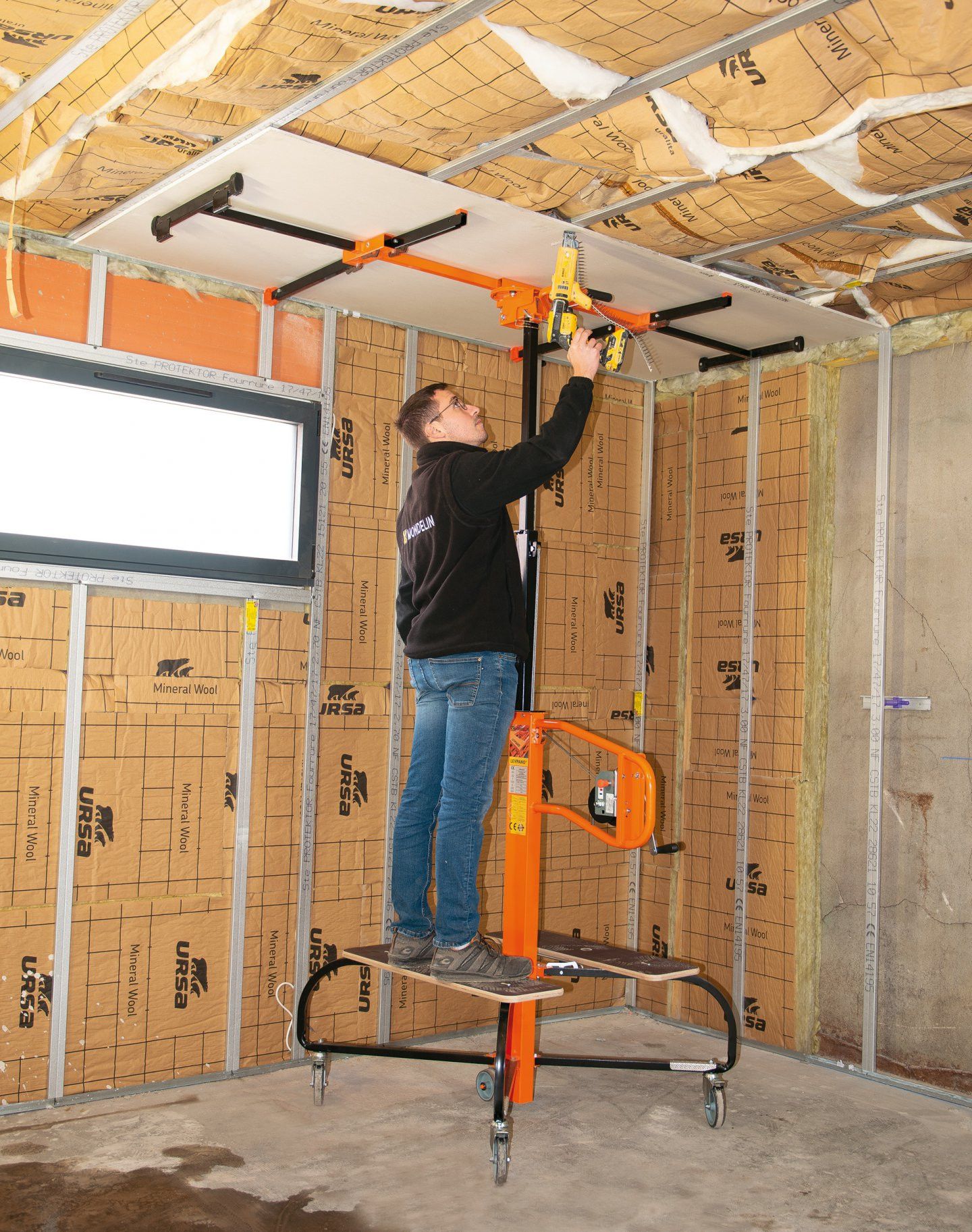

Levpano 4.5m with platforms and extension, 3 possible positions: horizontal up to 4.50m, under crawling and vertical up to 5.90m. Double cable system: 1 work cable and 1 anti-fall safety cable - PATENTED - 2 real work platforms that can be climbed to fix the plate.
CHARACTERISTICS
- With non-slip coating and mixed FSC certificate.
- Resistance of a platform: 150 kg.
- Quick assembly of the boards using a captive screw system. - Clip&Go system for ultra-fast locking and unlocking of arms and feet – PATENTED.
- Saving time on construction sites - Excellent plate support through 8 non-slip pads.
- The plate is maintained regardless of its size thanks to the 2 folding central arms and the 2 telescopic end arms.
- - Offset guide handle: more safety during descent, the craftsman's head is not underneath.
- Better visibility of the plate wedging when reaching the ceiling. - 2 retractable pads.
- They hold the plate and retract when they reach the ceiling to fit perfectly edge to edge with the previous plate. - Horizontal installation loading height: 0.82 m for installation at 3.50 m horizontally.
- 1m extension integrated into the column to be able to place horizontally up to 4.50m.
- Indexing every 10 cm to limit loading height – PATENTED – Simple and effective head tilt handle – PATENTED – Rotation plate: To go from horizontal to vertical or under-tracking installation, the head simply rotates by pulling a pin.
- Saving time and effort. - 4 Ø 125 mm wheels equipped with pivot and rolling locking system - New version: improvement of the 2 platforms with non-slip coating and rounded corners and edges.
- 2 intermediate steps to facilitate access to platforms and reduce fatigue.
- The sliding of the columns has been improved to achieve less friction and more fluidity.
- 4 wheels with brakes.
- 2 new transport wheels Ø 100 mm - Made in France, in our factory.
- Each Levpano is assembled and tested individually: it complies with CE regulations and European directive 2006/42/EC.
- Conformity examination carried out by an independent body: Socotec.
- Hardwood handle, with FSC label (from sustainably managed forests).
