Descripción
The Einhell TC-EH 1000 wire rope hoist is a powerful accessory for lifting and transporting heavy loads in the workshop, garage or on the construction site. Einhell attaches great importance to safety and functionality: The wire rope hoist is equipped with an extra-long steel cable of over 18 metres (diameter 6 millimetres), so that loads weighing 500 kilograms can be transported up to 18 metres high without the need for a pulley at a speed of eight metres per minute.

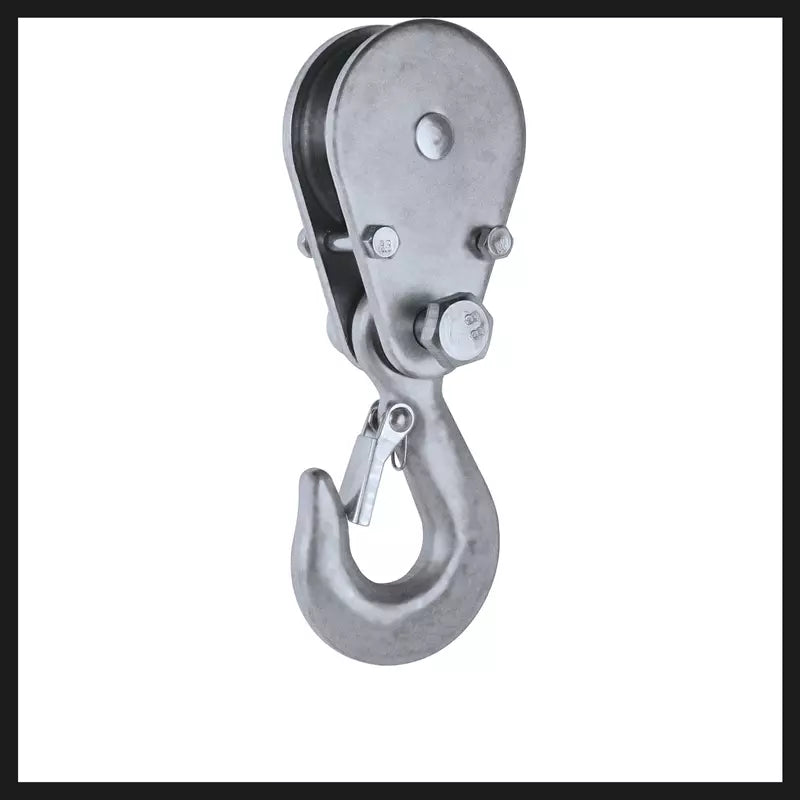

With the help of the pulley, the lifting weight can be increased to 999 kilograms, the lifting height to nine metres and the lifting speed to four metres per minute. The pulley with load hook thus doubles the maximum load weight.
A handle switch with emergency stop and a safety bar on the load hook contribute to increased safety at work. In addition, an automatic brake secures the load in all positions. The hoist is also equipped with an automatic limit switch which also helps prevent motor overheating.
The thermally switched motor guarantees a long service life and works powerfully and dynamically with a power consumption of 1600 watts. The simple installation of the device with two double clamps included does not pose any complications for the user.
CHARACTERISTICS
SPECIFICATIONS
- Mains supply: 220-240 V | 50 Hz
- Max motor power (S2 | S3%): 1600 W | 25 %
- Payload without return pulley: 500 kg
- Payload with return pulley: 999 kg
- Lifting height without return pulley: 18 m
- Lifting height with return pulley: 9 m
- Lifting speed without return pulley: 8 m/min
- Lifting speed with return pulley: 4 m/min
