Descripción
The Einhell TC-BD 500 pillar drill is a precision tool for high demands: Thanks to the 115 mm projection, precise drilling in large pieces of wood or metal can be carried out reliably. With 500 watts of power and 9 speeds, from 300 to 2410 rpm, precise drilling suitable for each material is achieved.
The drill press can be used at both very low and very high speeds and is therefore excellent for hard (metal) and soft (wood) materials. Precise drilling is possible thanks to the adjustable depth stop. The maximum drilling depth is 50 millimeters.
It features a robust crown gear drill chuck and MK2 holder, allowing you to use Morse taper drill bits and conventional drill bits with a diameter between 1.5 mm and 13 mm. Ball bearing spindle ensures long-lasting and smooth operation. The column drill can be variably adjusted thanks to the stepless height adjustment of the drilling table.
The drilling table can rotate up to 90° and tilt up to 45°. The three-arm rubber-coated crank proves its effectiveness thanks to the leverage effect, exerting precise pressure without excessive force. The flip-up chip guard ensures safety during use and the zero-voltage trip on/off switch prevents the machine from inadvertently restarting after a power outage.
CHARACTERISTICS
- 9-speed graduation suitable for each material
- For the most common drill sizes thanks to the toothed crown drill chuck
- Precise and fast drilling thanks to the adjustable depth stop

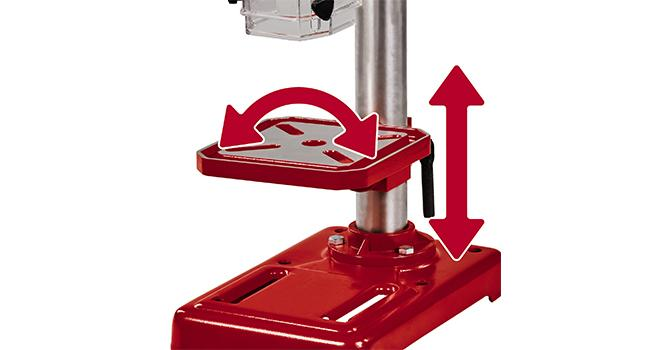

- Variable thanks to stepless adjustment of the drilling table height
- Additional swivel and tilt drilling table
- Rubber-coated three-arm crank for precise pressure
- Safe working thanks to foldable chip guard
- On/off switch with zero voltage trip
- Ball bearing spindle for easy operation and increased durability
SPECIFICATIONS
- Mains supply: 230-240 V | 50Hz
- Power: 350W
- Maximum power (S6 | S6%): 500 W | 40%
- Idle speed: 300 min^-1 - 2410 min^-1
- Number of speed steps: 9 levels
- Tiltable drill table: 45° - 45°
- Chuck Mount: B16
- Drilling diameter: 1.5mm - 13mm
- Neck: 115mm
